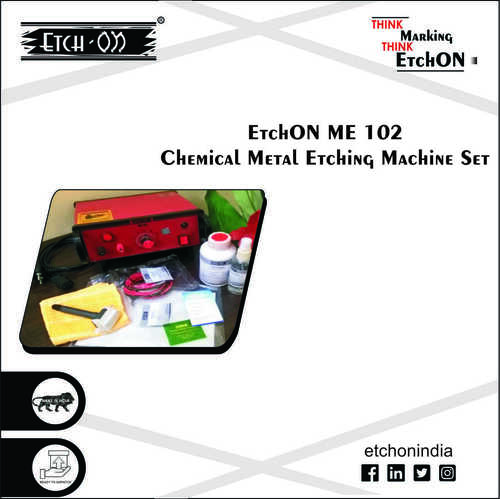

EtchON Metal Etching Machine ME102

Name: EtchON Metal Etching Machine ME102
Brand: EtchON Marks Control
Price: 19800 INR
Availability: InStock

Price 19800 INR/ Set

Get a Price/Quote

EtchON Metal Etching Machine ME102 Specification

Product Type
Electrochemical Metal Etching Machine

Weight
5 Kilograms (kg)

Size
90 mm x 214 mm x 204 mm

Voltage
110V ~ 230V AC Volt (v)

EtchON Metal Etching Machine ME102 Trade Information

Minimum Order Quantity
1 Set

Supply Ability
20 Sets Per Day

Delivery Time
4 Days

About EtchON Metal Etching Machine ME102

EtchON ME 102 - This model is manual, portable and electrochemical metal etching machine. It is economical and fit for full batch production. Etching Output Voltage is variable for controlling etching Time & Depth. The Etching procedure is limited for black, brown and white marking. AC/DC Converter for Black & White marking. Marking Head is Graphite based for better durability. Non-corrosive Electrolyte as well as Reusable Felt. The machine is an economical utility for laser marking.

Technical Features:

Working Style - Especially Manufactured Sealed & Compact Transformer
Marking Color - Black/White/Brown
Etching Time - Average (2 to 3 Seconds)
Etching Quality Excellent & Sharp
Etching Depth Less then 0.2 mm (200 microns)

Technical Specification:

Transformer - Sealed Compact
Weight: 5 Kg
Input Voltage - 230VAC
Output Voltage 0 to 25V (Variable )

Application: Ideal for All Conductive Metals (Non-Coated)

Product details

Dimensions	90 mm x 214 mm x 204 mm
Etching Depth	0.01 mm
Etching Time	1 - 3 Seconds per Sq. Inch
Input Voltage	230 VAC
Max Power	50 VA
Net Weight	4.5 kg
Output Voltage	0 - 25 Volts (5 Steps)
Transformer	Sealed High Grade
Warranty	12 Months
Model/Type	EtchON ME102
Brand	EtchON
